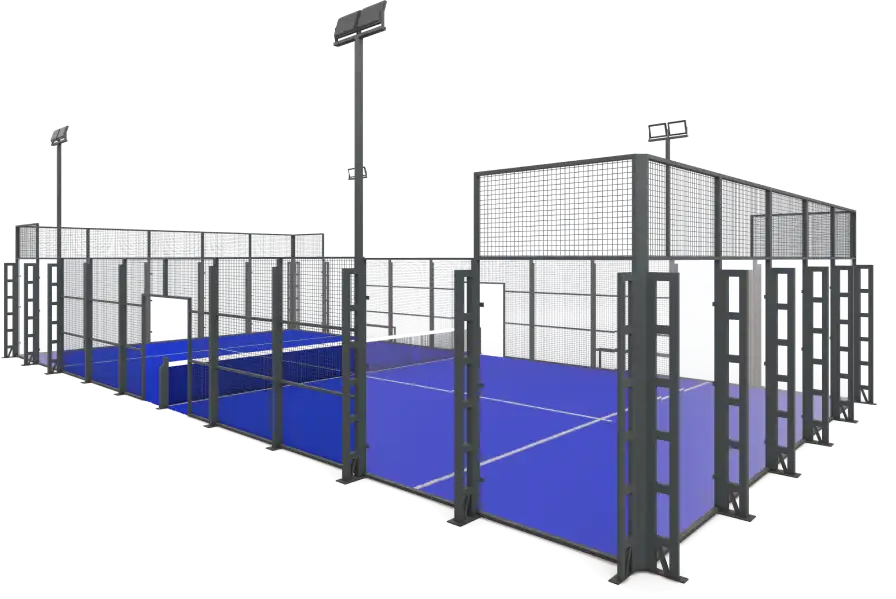

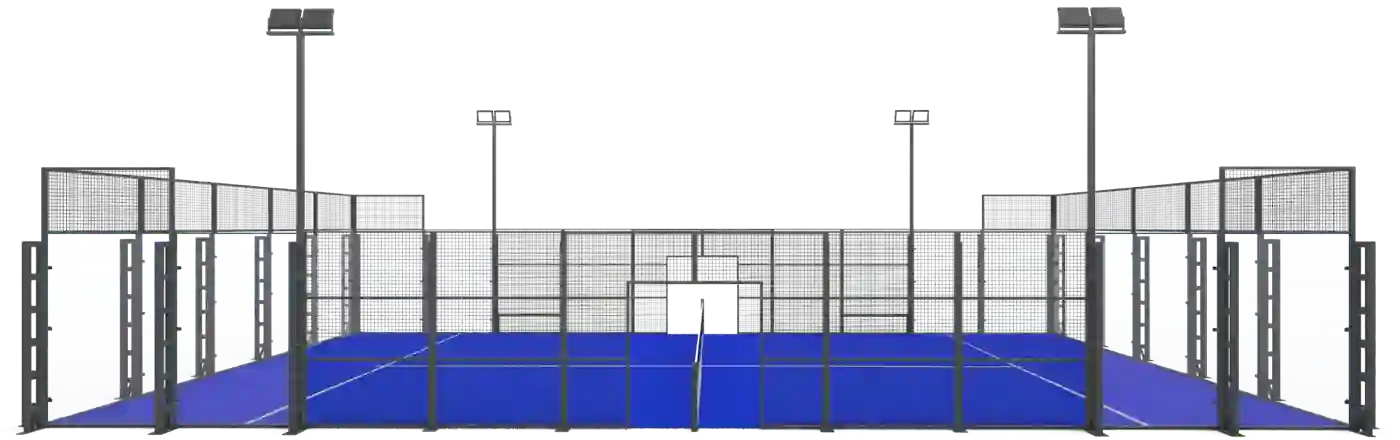

Unleash the Power of Resilience with Club Force 80 Padel Court!
Meticulously engineered to withstand hurricane-force winds without compromising its structural aesthetics.
Designed to provide comfortable gameplay even in the face of extreme weather conditions, it's backed by wind speed calculations tailored to meet the demands of technically demanding markets.
Compared to other models on the market, our court stands out for its robustness and resilience while maintaining an attractive aesthetic that ensures the steel doesn't detract from the overall visual appeal.
Experience the benefits of our Club Force 80 Padel court
Experience the excellence of our premium quality Padel court structure
Structures
Engineered to withstand hurricane-force winds, our court features additional reinforcements with a design of steel buttresses, ensuring maximum resistance to abrasion and oxidation with its galvanized steel structure.
The court structure consists of galvanized S275JR steel profiles, anchored securely to the ground using a special anchoring system. The side and top frames are complemented by electro-welded mesh in accordance with UNE-EN-10223-4 standards.
To prevent vibrations of the mesh, the structure includes intermediate scaffolding. Fastening the structure to the pavement is achieved with countersunk metal anchors measuring M8X80 mm. Plus, its assembly process is seamless, thanks to self-locking safety screws and nuts made of galvanized steel.
The structure of Portico Sport padel courts undergoes manufacturing processes including cutting-edge industrial technologies such as:
- Laser cutting guarantees precise cuts and delivers high-quality finishing.
- A fully automated robotic welding assembly line guarantees the quality of welds, preventing potential oxidation in the future.

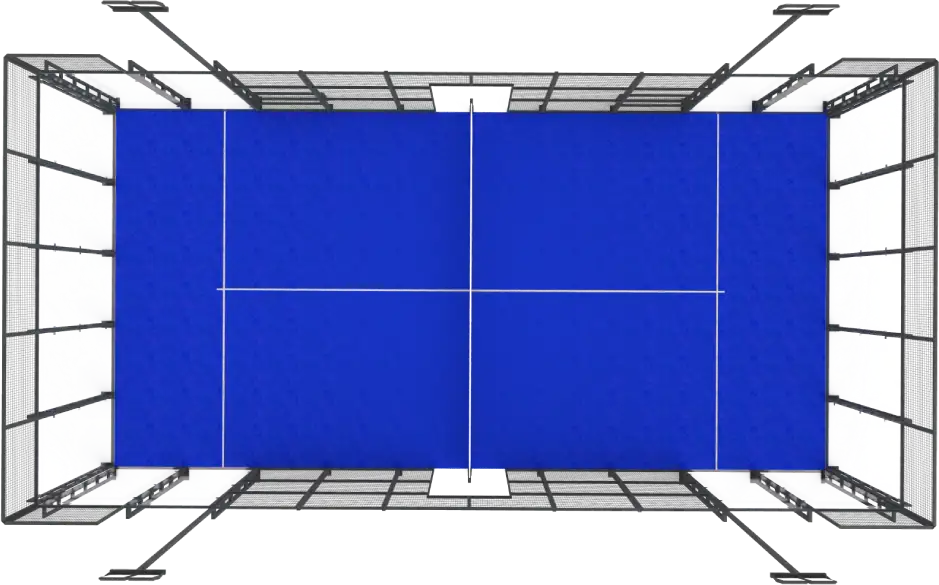

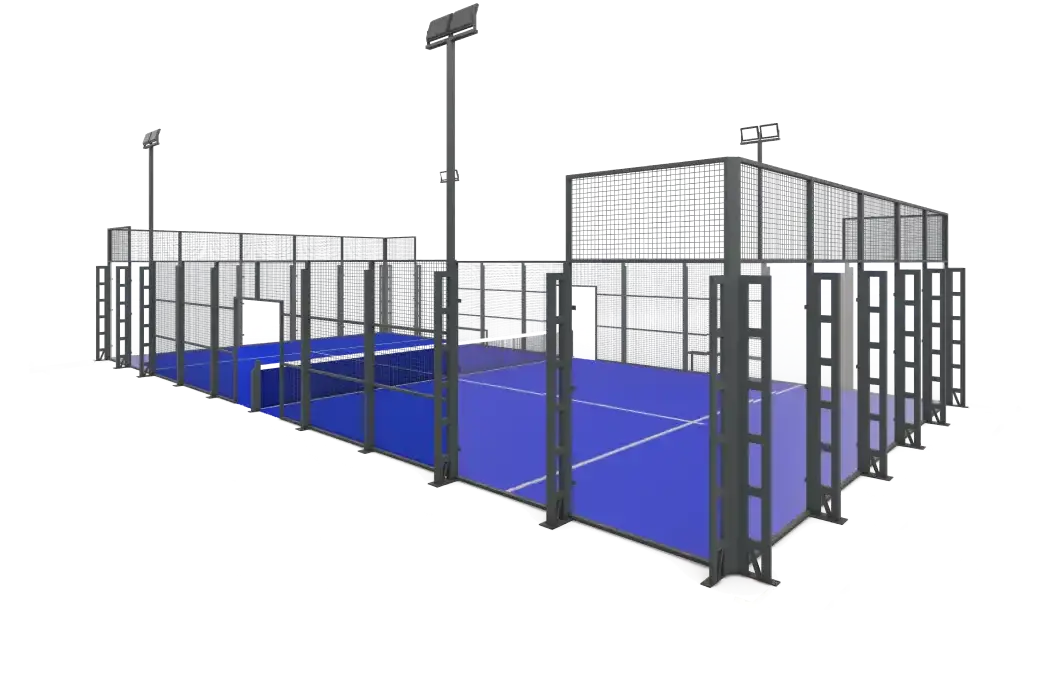

Club Force 80 Padel Court dimensions
Exterior
Length: 20,87 m
Width: 10,87 m
Interior
Length: 20 m
Width: 10 m
Glasses
Tempered Safety Glass in Every Padel Court!
Discover unrivaled safety and durability in our padel courts. Each court features tempered safety glass, available in either 10 or 12 mm thickness, tailored to the specific requirements of your project. Rest assured, our glass meets all regulatory standards for installations of this kind. Partnering with esteemed Spanish manufacturers boasting CE marking, we guarantee top-notch quality in every aspect of our construction.
GLAZING is done using clear tempered glass with polished edges, fixed to the metal structure using countersunk polyethylene bushings, galvanized screws and neoprene gaskets for perfect glass/metal support, with a total of 6 anchor holes. Our glass panels boast outstanding physical and mechanical properties, including impact resistance and optimal flatness.
Structure paint
Did you know that now you can add a splash of color to your Padel court?
Discover the epitome of distinction in Padel court customization with a range of lacquer types, providing endless options to paint your court's structures in vibrant hues. Our LACQUERED PAINT offers maximum resistance to abrasion and oxidation. Choose the RAL color that suits your preference and stand out on with our customizable color options.
Whether you opt for a monochromatic appearance or desire to inject vibrant energy with a bicolor scheme, let your court mirror your unique style and personality, ensuring it captivates attention on the court.
- INDOOR: powder coating formulated with thermos-fusible resins.
- OUTDOOR: thermo-fusible powder primer treatment with a high zinc content formulated to improve the corrosion protection of galvanized steel.
- HOT DIP GALVANIZED: treatment of molten zinc at a temperature of 450 ºC in order to achieve high protection of parts against corrosion in marine environments. Includes powder coating formulated with thermo-fusible resins.
Turf
Experience Unmatched Performance on our Turf!
We partner with the top turf companies to ensure your court receives premium quality turf. Every court is equipped with the latest generation turf engineered with textured monofilaments, featuring different thickness and pile heights, very low abrasion, made of polyethylene (PE) and specific additives with high resistance to wear and anti-UV treatment, resistant to heat and extreme weather fluctuations.
Stabilization fill and ballast using rounded, washed and dried silica sand, with 97% silica, granulometry between 0,2 - 0,6 mm in an approximate quantity of 10-15 Kg/m2, depending on the lawn model.
Our cutting-edge turf guarantees padel players an optimized playing speed and improved ball bounce and offers the option of straight or curled fibers and is available in a wide variety of colors.
Curled turf
A system of artificial turf that combines curled textured fibers
Straight Turf
Cutting-edge artificial turf system composed of straight fibers
Led lighting
Illuminate Your Game with Portico Sport's Padel Court Lighting!
Enjoy the ultimate LED lighting solution for padel courts, exclusively offered by Portico Sport in partnership with leading specialists in the field.
Our padel court lighting ensures optimal illumination and uniformity across all playing areas. From the net to the access zones, background, sidelines, and high ball zones, our lighting solution eliminates glare and shadows, providing players with unparalleled visibility and performance.
The quality of our projectors, designed to withstand impacts up to IK10, with IP66-IP67 sealing degrees and resistance to voltage surges of 4kV - 6kV, combined with high heat dissipation capabilities of the housings, allows for an extended lifespan of our projectors, with a warranty of up to 5 years.
Our projectors are designed to cover all types of courts specified in the European standard for sports lighting (UNE-EN-12193:2020), ranging from recreational use (Class III) to professional competitions or televised broadcasts (Class I - NIDE standard).
Crafted from galvanized and lacquered S275 JR steel profiles, our masts are securely attached and anchored to the court structure, ensuring durability and reliability.
To withstand extreme weather conditions, this court features reinforced lighting masts with double pillars, protecting their impressive height of 6 meters each. Each mast supports two projectors, providing precise and clear illumination for your court.
Lighting masts
Our masts, attached and anchored to the court structure, are crafted from galvanized and lacquered S275 JR steel profiles, ensuring durability and reliability. Standing at an impressive height of 6 meters, each mast provides support for 2 projectors, illuminating your court with precision and clarity.
Choose from our range of aesthetic options to complement your court design:
Straight Mast
For a sleek and linear look.
V-shaped Mast
Adding a touch of aggressiveness to your court.
Curved Mast
Offering a fluid and elegant solution.

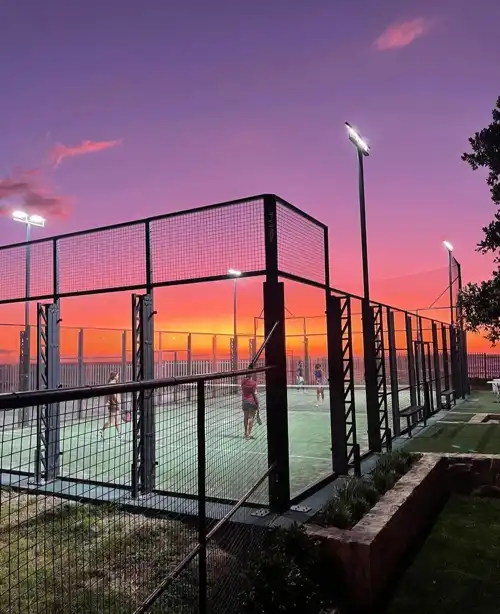

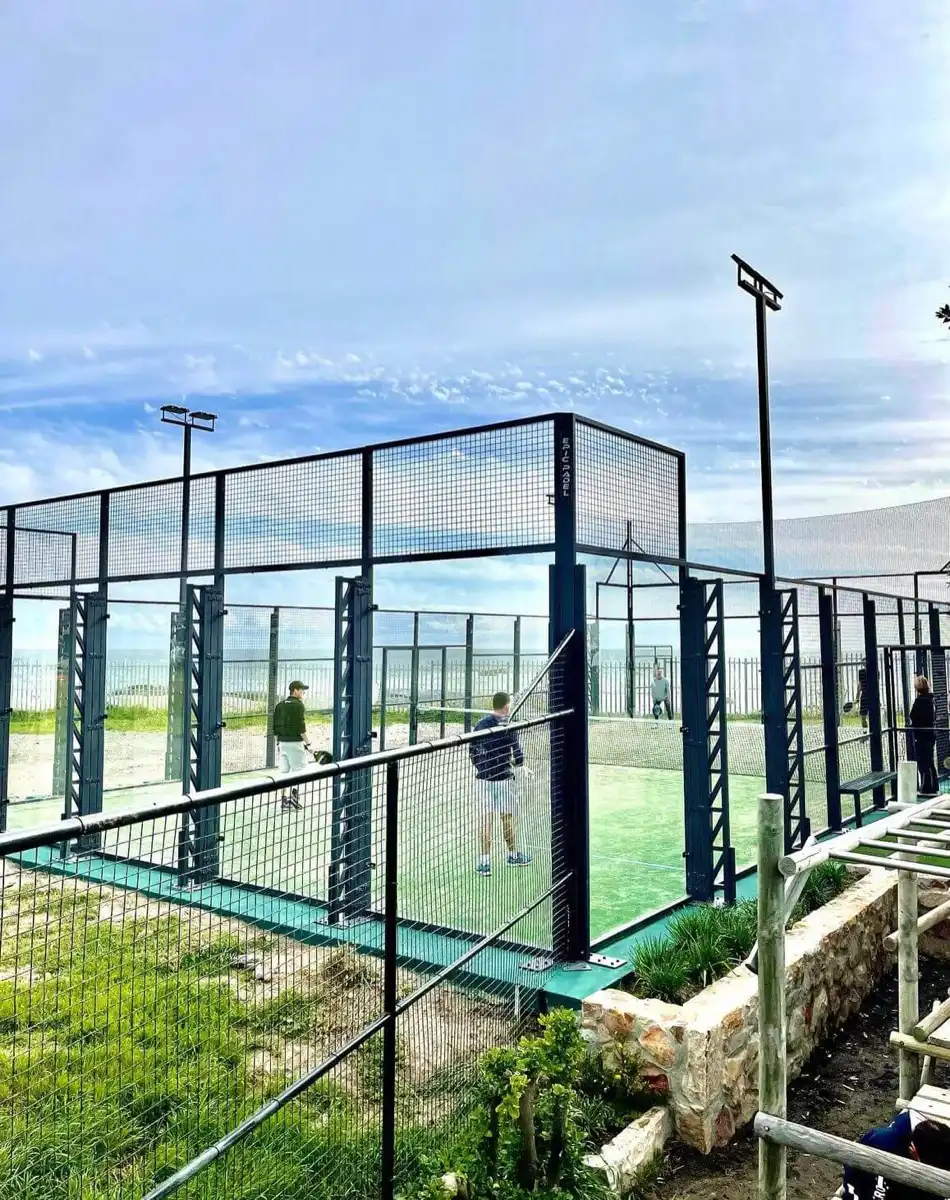

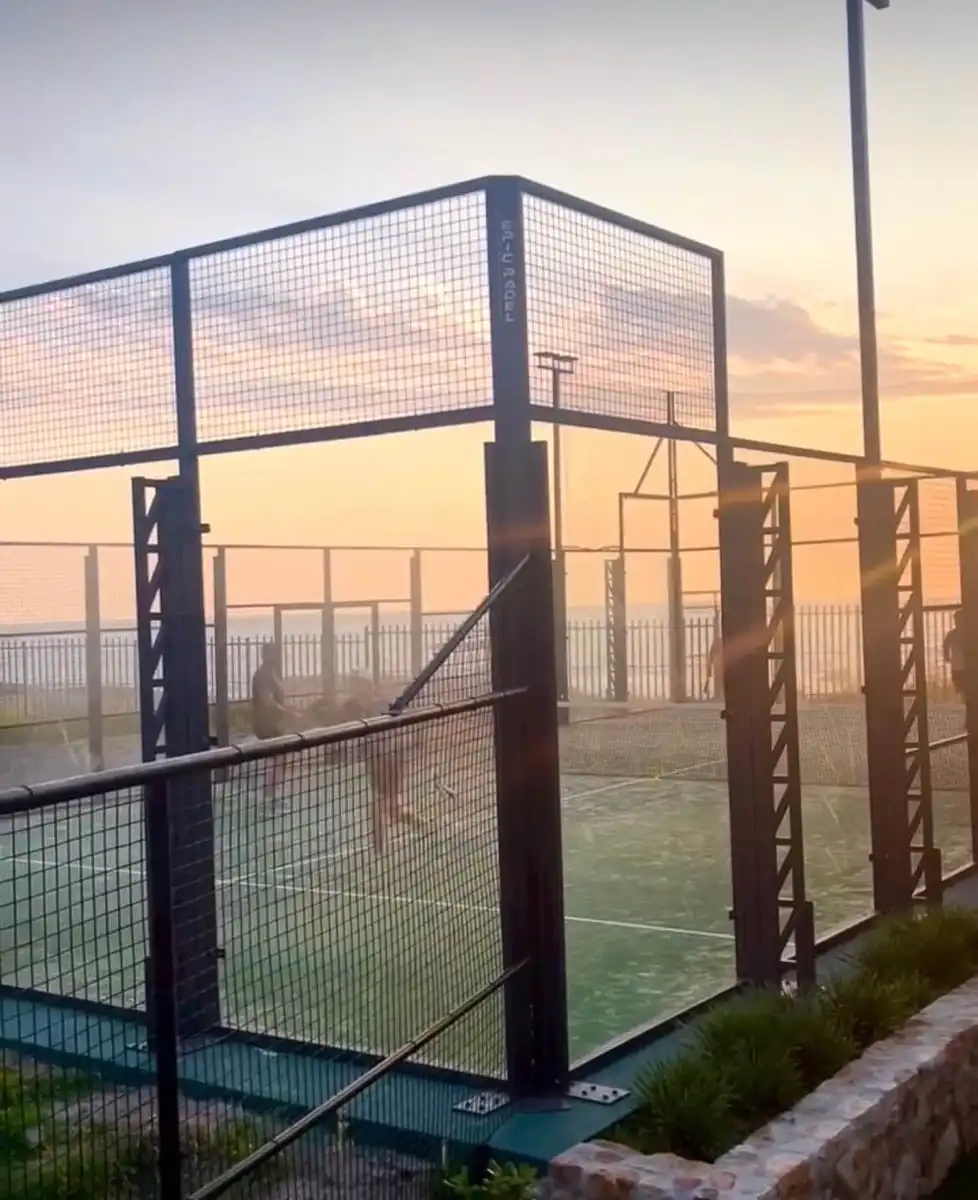

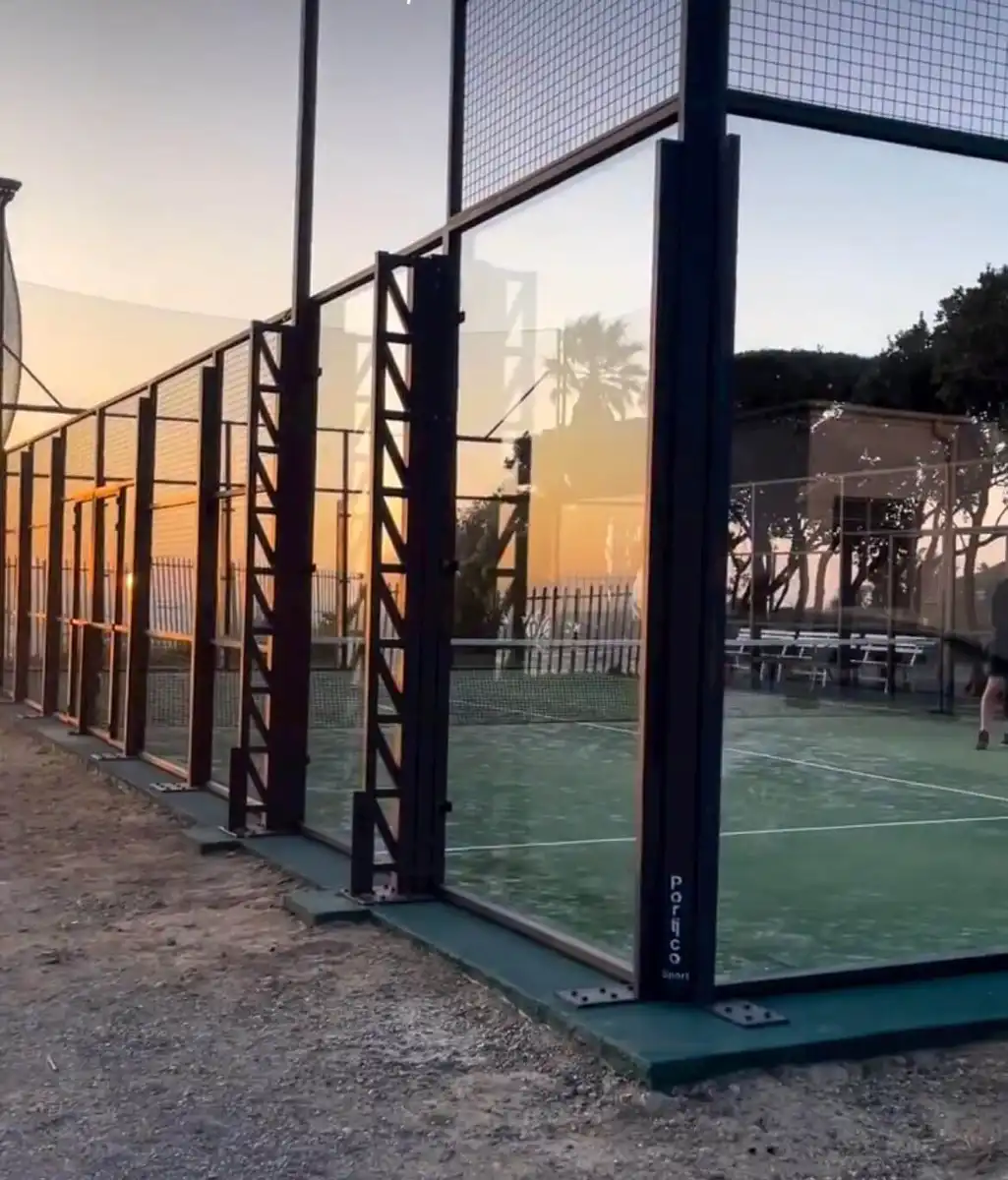

Virgin Active Padel Club The Glen in South Africa

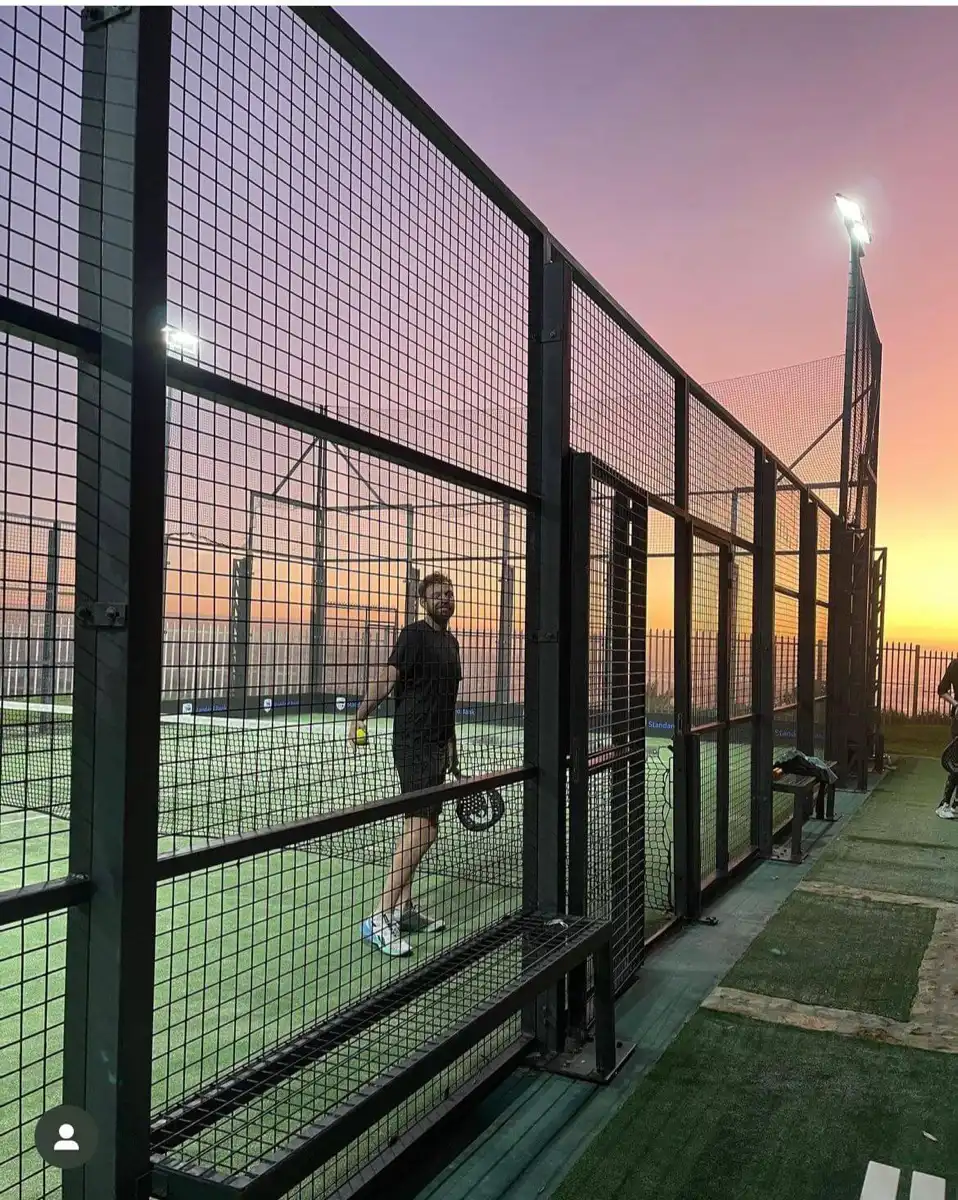

Virgin Active Padel Club The Glen in South Africa

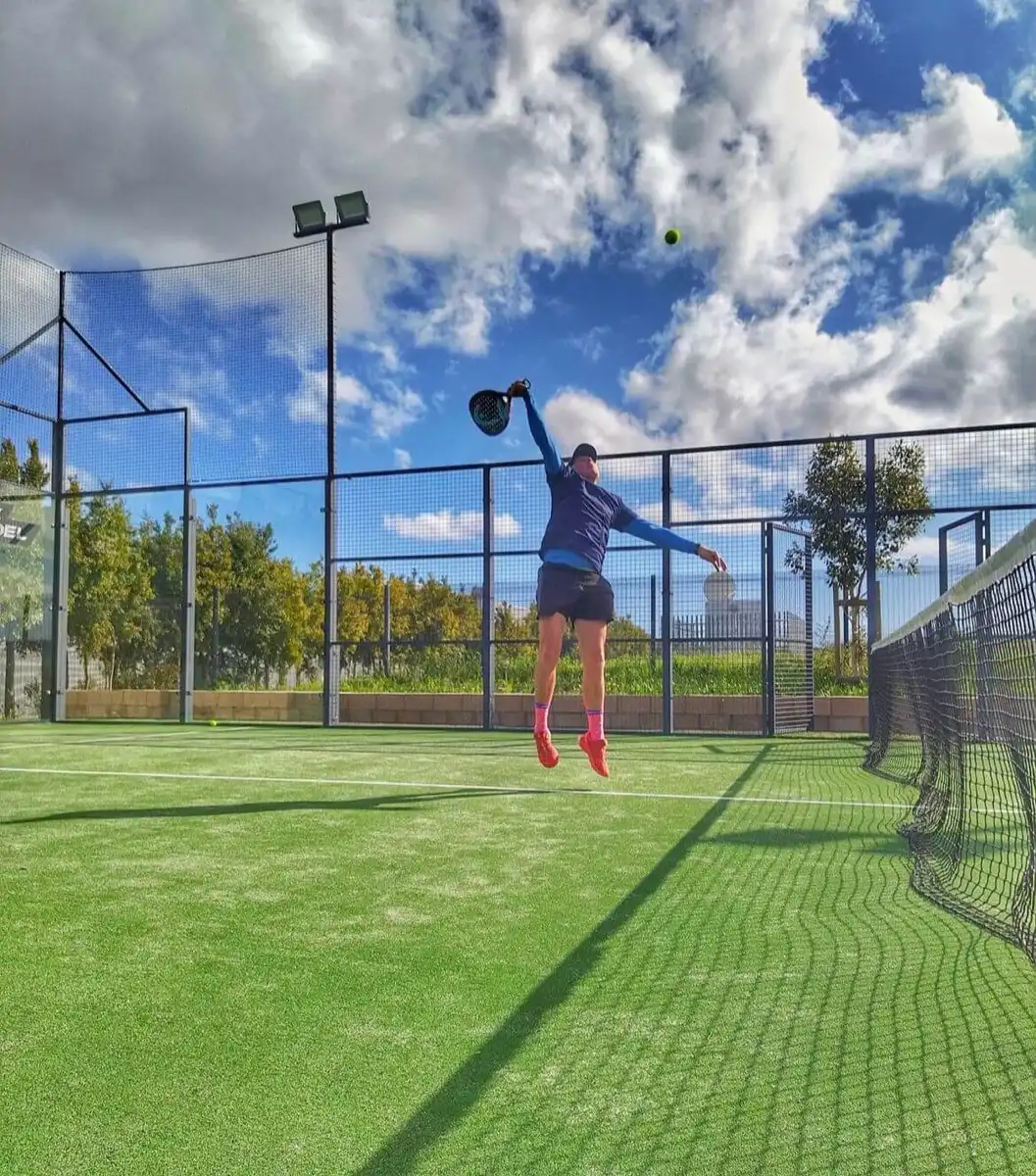

Virgin Active Padel Club The Glen in South Africa

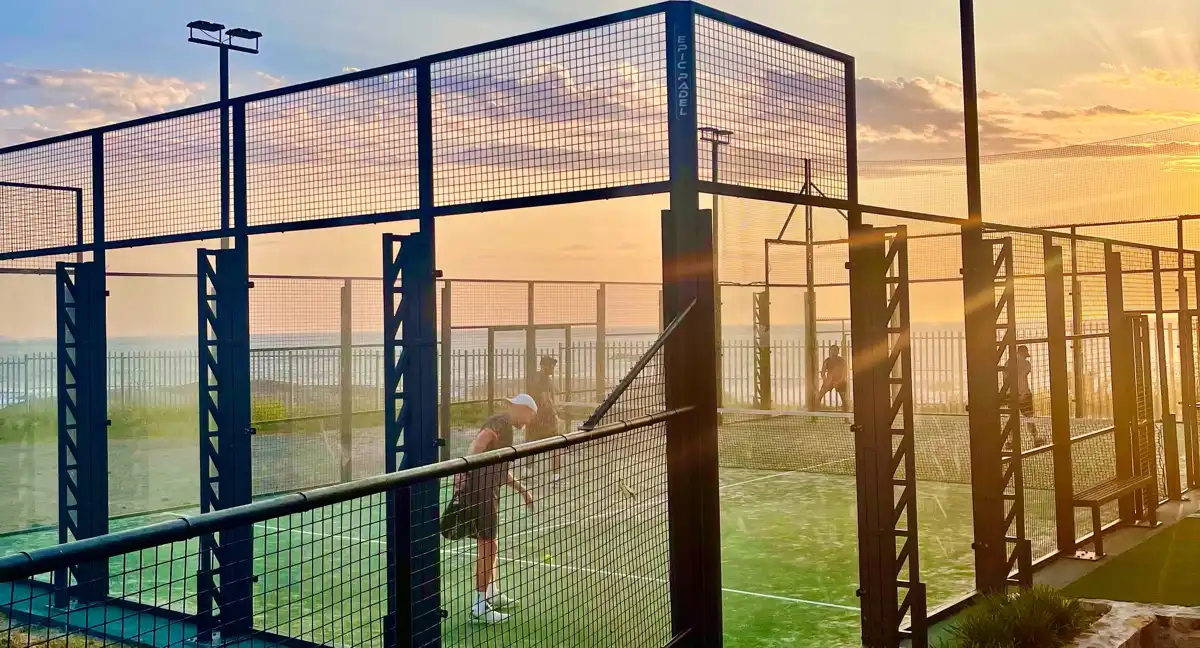

Virgin Active Padel Club The Glen in South Africa

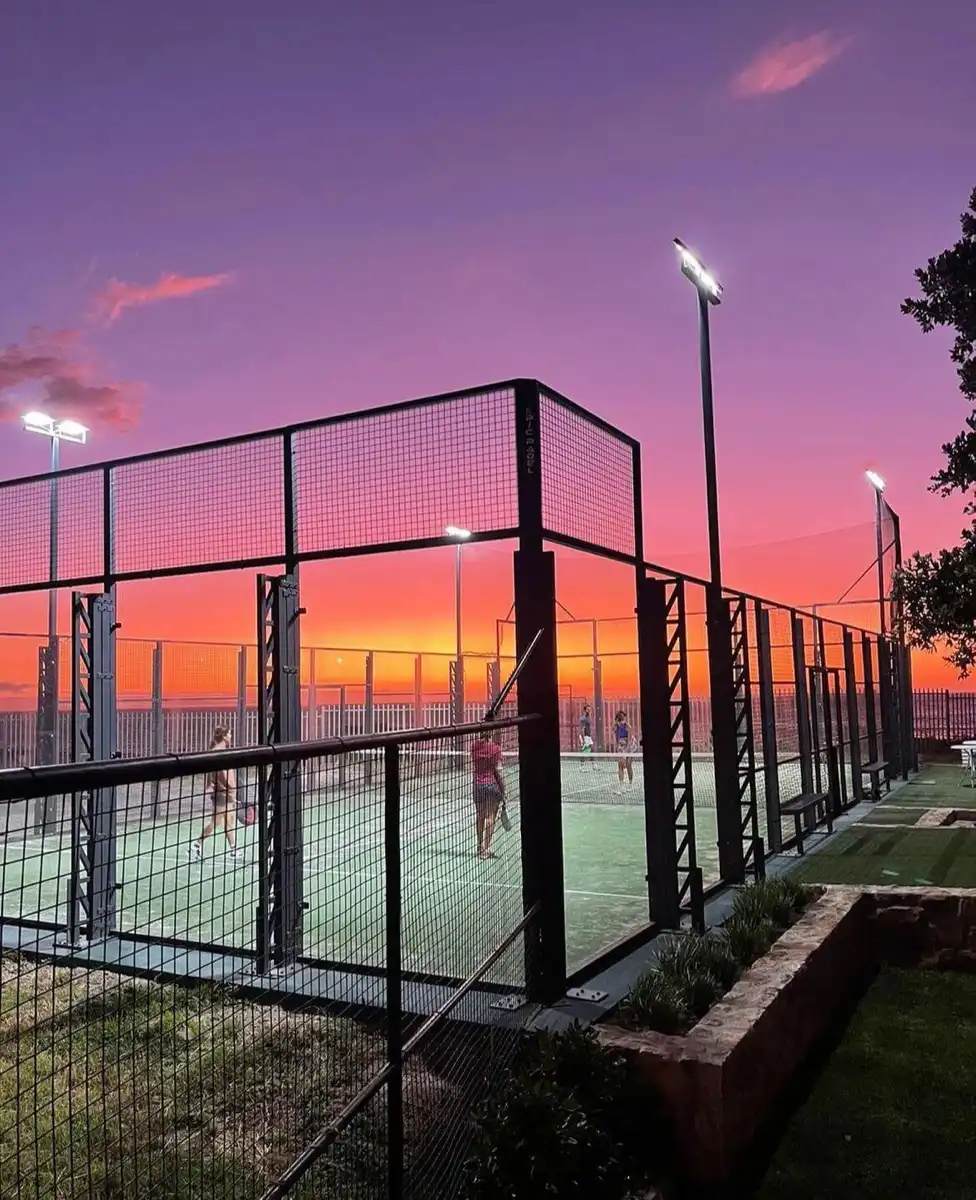

Virgin Active Padel Club The Glen in South Africa

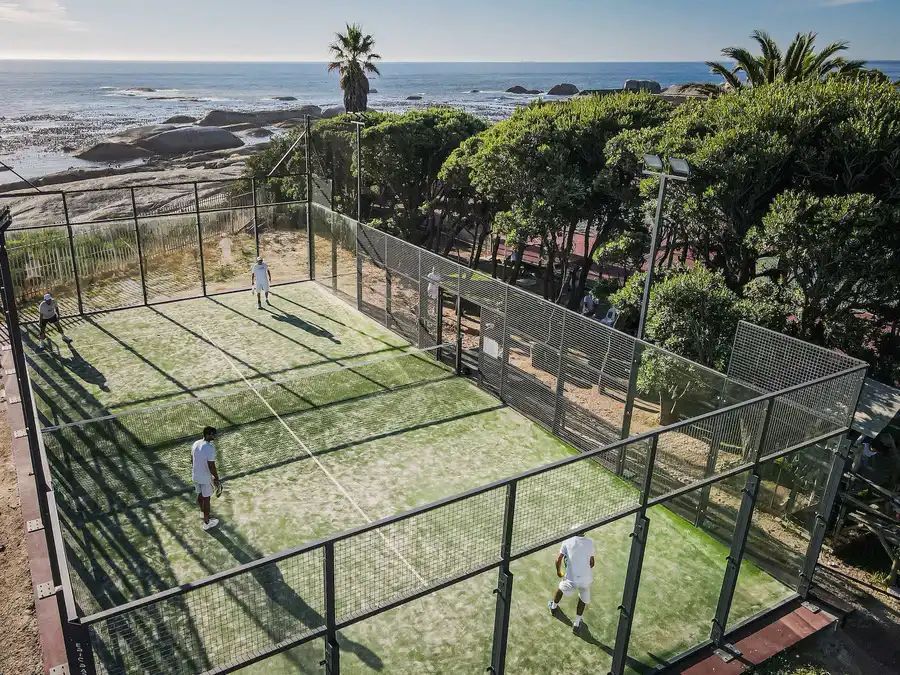

Virgin Active Padel Club The Glen in South Africa
Virgin Active Padel Club The Glen in South Africa
Virgin Active Padel Club The Glen in South Africa Discover other Padel Courts
